Aluminium High Voltage Range
Suitable for use in Non-Ex pumping and tunnelling projects, as well as metalliferous and open-cut mining, KonNx UK’s high voltage aluminium couplers offer a range of voltage ratings in order to assist your site meet its operational needs.
Products available in our high voltage range of cable coupler solutions include:

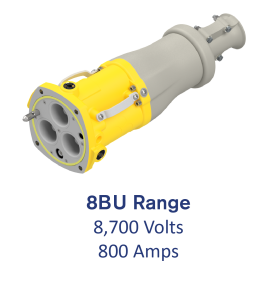

- the 8BU, with a current carrying capacity of 8,700 volts and rated to 800 amps;

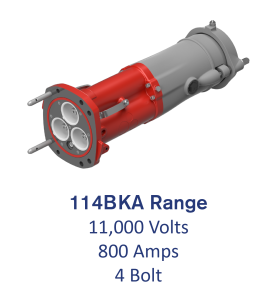

- the 114BKA, the first coupler in our 11,000 volt range, rated to 800 amps and requiring only 4 bolts for faster opening and closing the coupler system, increasing efficiency;

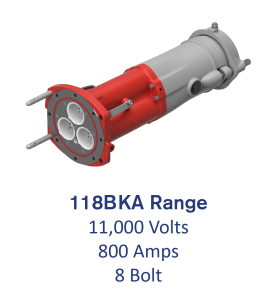

- the 118BKA, the second coupler in our 11,000 volt range, rated to 800 amps and requiring 8 bolts to open and close the coupler system;

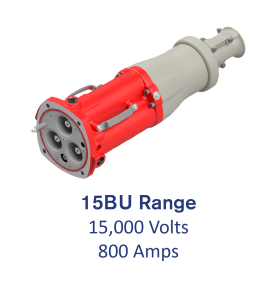

- the 15BU, with a current carrying capacity of 15,000 volts and rated to 800 amps;

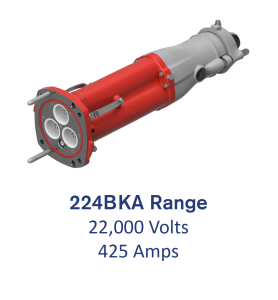

- the 224BKA, with a current carrying capacity of 22,000 volts and rated to 425 amps;

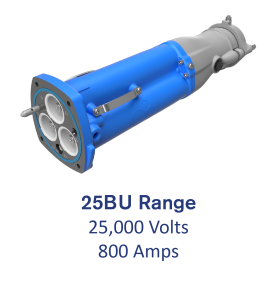

- the 25BU, with a current carrying capacity of 25,000 volts and rated to 800 amps; and

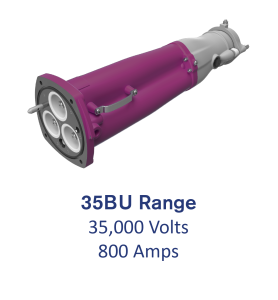

- the 35BU, the world’s first and only coupler with a current carrying capacity of 35,000V, rated to 800 amps.
A number of compatible accessories are available for products within this range, including gear mount adaptors, crimp contacts, armoured and unarmoured glands, and KonNx UK’s CAT Skid.
As of mid-2022, all KonNx UK aluminium high voltage couplers now dispatch with our battery-free LED Live Line Indicator as a standard feature. Developed using modern LED technology, the use of LED’s allows the Live Line Indicator to be seen even in the bright daylight of open-air operational sites. Redesigned in early 2024, the LED Live Line Indicator is now flush with the coupler for easier cleaning and maintenance.
Safety is our number one priority, our goal being to provide those working with high voltages peace of mind with safe, high quality power supply solutions. The design of couplers within this range provides even greater earth connectivity and pilot control. Additional features of KonNx UK’s high voltage aluminium couplers include:
- Full phase to earth segregation with earth;
- High mPa aluminium material;
- Earth pilot connectors; and
- Silicone seal for face.
Further information on these products, including product dimensions and solids, can also be accessed by clicking the relevant image below. Please don’t hesitate to get in touch if you’d like access to a specific product test report, or to discuss how our high voltage couplers could work for your site.
