25BU Range | 25,000 Volts | 800 Amp | High Voltage Couplers

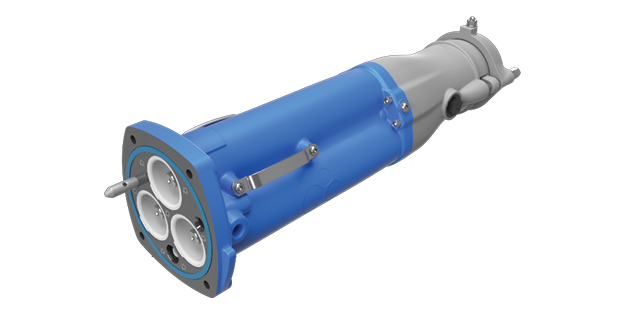

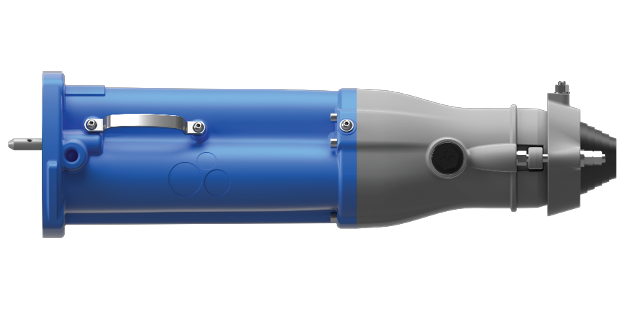

The IP68 25BKA high voltage aluminium coupler is suitable for use in Non-Ex operations such as opencast and metalliferous mining, and pumps and tunnelling projects.
The 25BKA is based off of the innovative design of international partner company AusProof’s flagship 224BKA, the first coupler in the world to be rated at 22,000V. Further exploring into the unknown of electrical cable couplers and current understanding, the design of the 25BU takes this innovation one step further. Rated for 800 amps with an operating voltage of 25,000 volts, the 25BU has been in service since 2006. The 25BKA also features a guide pin that will become enclosed in the body casting of the coupler when the system is closed, protecting it from external damage.
-
Features
- LED Live Line Indicator
- IP68
- Less bolts to make a join
- Earth Pilot Connector

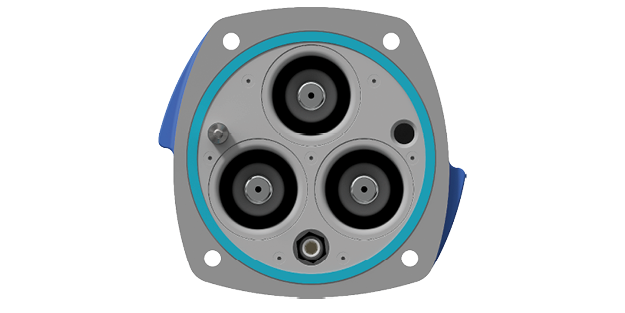

- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Aluminium Material

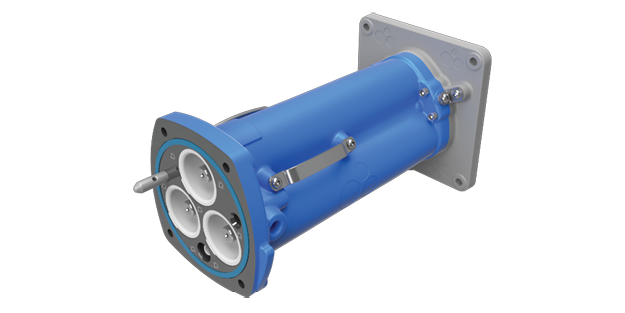

- Detachable Adaptor Flange
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- Adaptor – Gear Mount
- Cast Protection Cover
- Silicone Phase Connectors
- Crimp Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 25,000 Amp 800 LOA (mm) 810 Weight (KG) 22.5 Material Aluminium Volume (Litres) 4.9 -
Test Results
Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, IEEE 386 Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 sec
1 Test of 20.0kA for 1.0 secThrough Fault Current (Earth) 1 Test of 5.01kA for 9.0 seconds AC HV Withstand (Phase) 52.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800A Ingress Protection IP68 Impulse Voltage 125kV
150kVPartial Discharge < 2 pc
