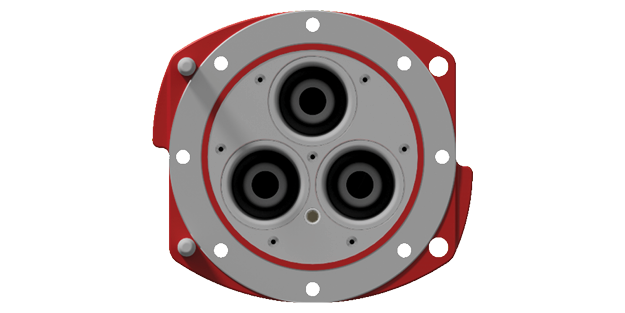

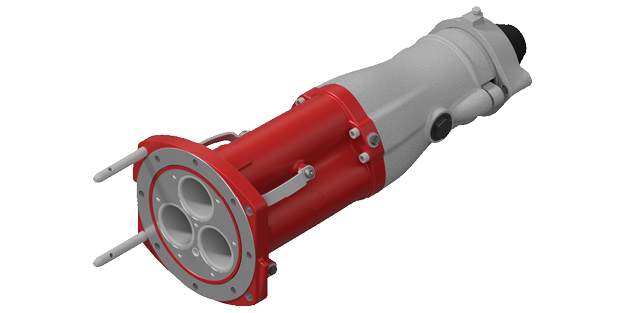

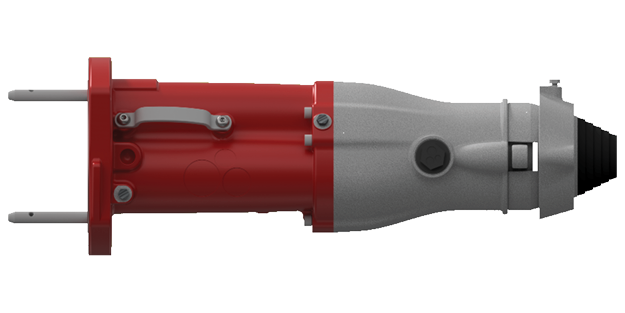

118BKA Range | 11,000 Volts | 800 Amp | 8 Bolt | High Voltage Couplers

The 118BKA is rated for 800 amps with an operational voltage of 11,000 volts and features an ingress protection rating of IP68.

The 118BKA is designed for use in Non-Ex operational environments, such as open-cut and metalliferous mining, and pumps and tunnelling projects. Released in 1995, the design of the 118BKA is based on AS/NZS1300 compliance, requiring the use of eight bolts to join two couplers and close the system.
Contact us

  • Features

    • IP68 rating
    • LED Live Line indicator
    • Silicone Phase Connectors
    • Solid face and body casting
    • Higher mPa Aluminium material
    • Handles
    • All air expelled on joining
    • Silicone seal for face
    • Full phase to phase segregation with earth
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

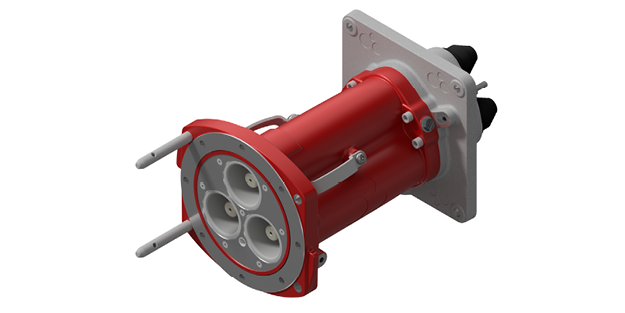

    • Adaptor – Gear Mount
    • Cast Protection Cover
    • Silicone Phase Connectors
    • Crimp Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 11,000
    Amp 800
    LOA (mm) 690
    Weight (KG) 18.5
    Material Aluminium
    Volume (Litres) 4.0



    Download Product Dimensions

    Download Test Report

    Download Product Solids

    Back

  • Test Results

    Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, AS/NZS 1802, AS/NZS 2802, IEEE 386 and IEEE 404
    Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 sec
    1 Test of 20.0kA for 1.0 sec
    Through Fault Current (Earth) 1 Test of 5.01kA for 9.0 seconds
    AC HV Withstand (Phase) 24.0kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 800A
    Ingress Protection IP68
    Impulse Voltage 110kV
    Partial Discharge < 1 pc
