35BU Range | 35,000 Volts | 800 Amp | High Voltage Coupler

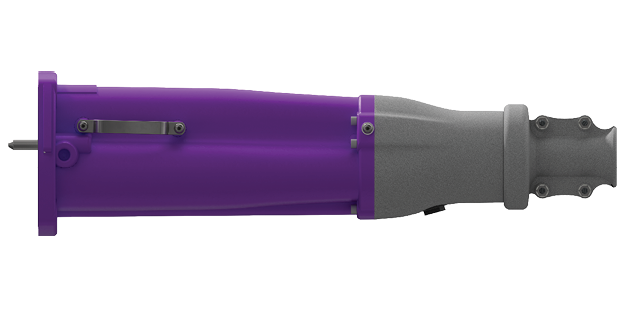

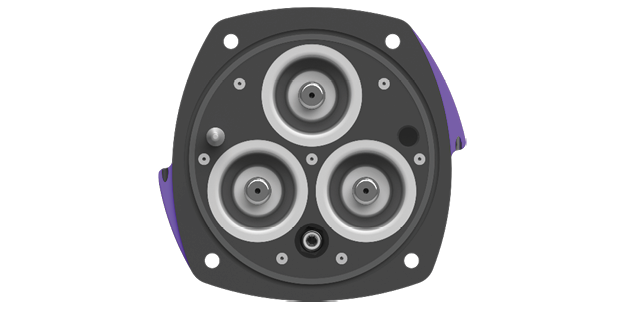

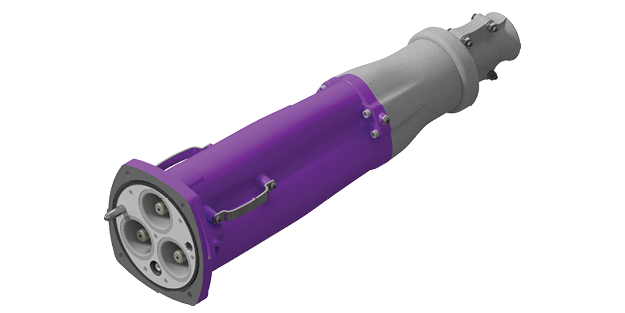

Exclusive to KonNx UK and its sister companies, the 35kV aluminium high voltage coupler is the only coupler in the world capable of withstanding 35,000 volts.
Developed in a staggering 15 weeks, the 35BU was released in 2013 after international partner company AusProof was approached by a client who was unable to find a product suitable on the market to meet their needs. Popularly used in South America, Asia and Europe, common applications of the 35BU include the supply of power from overhead lines to mobile transformers, as well as supplying power to dredges. The 35BU also features a guide pin that will become enclosed in the body casting of the coupler when the system is closed, protecting it from external damage.
-
Features
- LED Live Line Indicator
- Earth Pilot Connector
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Aluminium Material
- Detachable Adaptor Flange
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- Adaptor – Gear Mount
- Cast Protection Cover
- Silicone Phase Connectors
- Crimp Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 35,000 Amp 800 LOA (mm) 895 Weight (KG) 24.5 Material Aluminium Volume (Litres) 6.0 -
Test Results
Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, IEEE 386 Through Fault Current (Phase) – Through Fault Current (Earth) – AC HV Withstand (Phase) 72.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800A Ingress Protection – Impulse Voltage 200kV Partial Discharge < 3 pc
