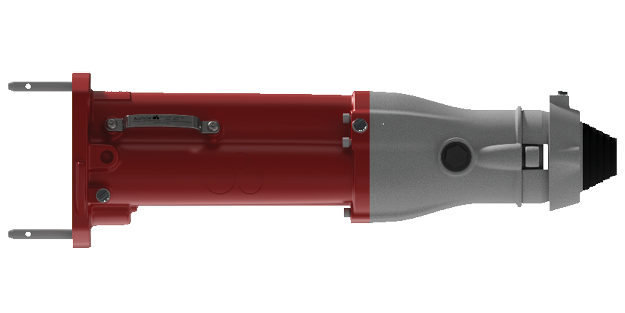

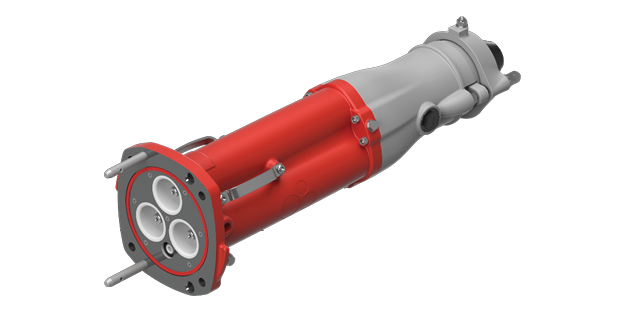

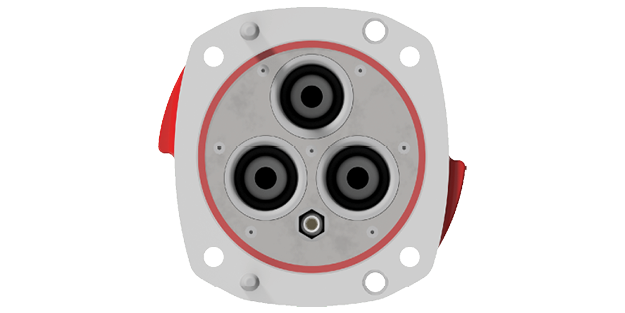

224BKA Range | 22,000 Volts | 425 Amp | High Voltage Coupler

Rated for 425 amps with an operating voltage of 22,000 volts, the 224BKA is rated at IP68.

Re-released in 1996 after redevelopment, the original 224BKA was designed in 1989. This coupler was the first of its kind, a genderless coupler featuring an operating voltage of 22,000 volts. Suitable for use in Non-Ex operational environments, such as opencast and metalliferous mining, and pumps and tunnelling projects, the 224BKA requires just 4 bolts to open and close the coupler system, and holds an ingress protection rating of IP68.
Contact us

  • Features

    • IP68 rating
    • LED Live Line indicator
    • Less bolts to make a join
    • Earth Pilot Connector
    • Silicone Phase Connectors
    • Solid face and body casting
    • Higher mPa Aluminium material
    • Handles
    • All air expelled on joining
    • Silicone seal for face
    • Full phase to phase segregation with earth
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

    • Adaptor – Gear Mount
    • Cast Protection Cover
    • Silicone Phase Connectors
    • Crimp Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 22,000
    Amp 425
    LOA (mm) 810
    Weight (KG) 22.5
    Material Aluminium
    Volume (Litres) 4.9



    Download Product Dimensions

    Download Test Report

    Download Product Solids

    Back

  • Test Results

    Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298
    Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 sec
    1 Test of 20.0kA for 1.0 sec
    Through Fault Current (Earth) 1 Test of 5.01kA for 9.0 seconds
    AC HV Withstand (Phase) 46.0kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 425A
    Ingress Protection IP68
    Impulse Voltage 125kV
    150KV
    Partial Discharge < 2 pc
