PES (Plug Extra Small) Range | Stainless Steel Restrained Plugs and Receptacles

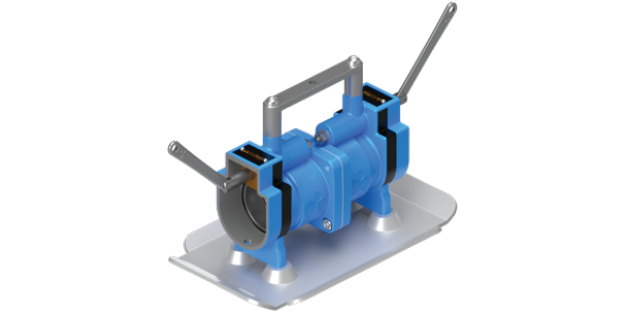

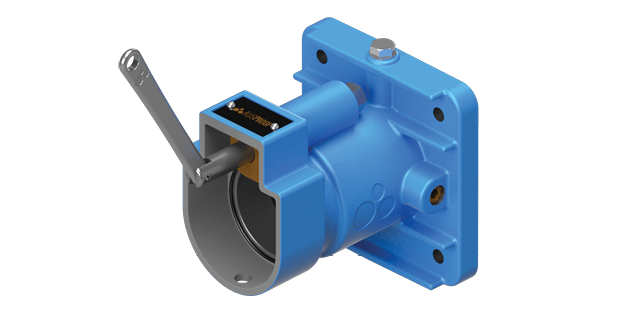

Ex-certified and suitable for use in mining, tunnelling and commercial applications, including Group 1 hazardous environments, the PES Range is now available with Back-to-Back (B2B) and Receptacle Gland Bracket (RGB) assemblies.

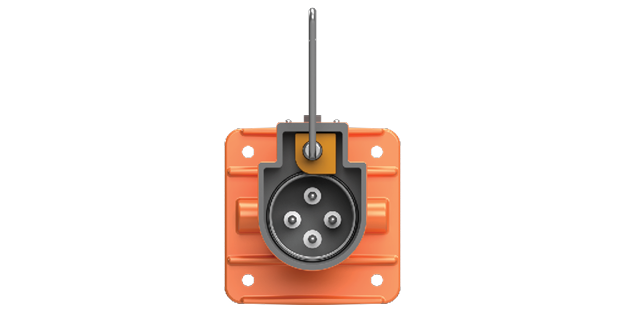

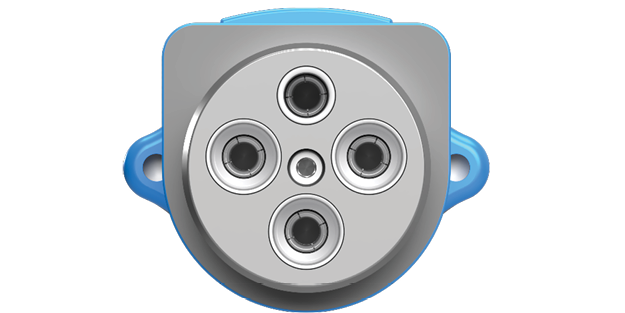

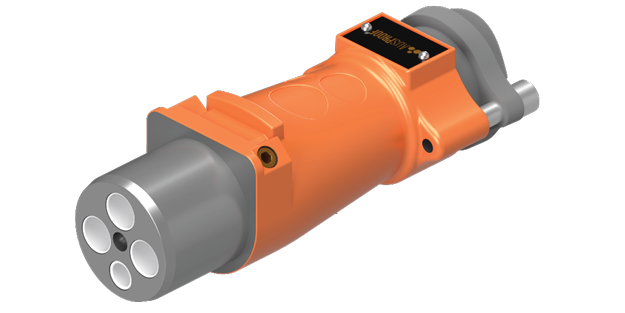

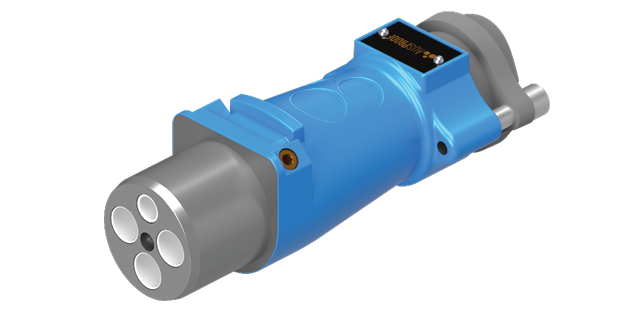

With operating voltages of 660V and 1,100V, the PES range offers the availability of 60A products that have been designed to withstand 90A. Both options are fully compatible with each other, with black stripes used for easy identification of 90A products. Plugs and receptacles rated to 60A are compliant to AS/NZS1299, while those rated to 90A are not only compliant to AS/NZS1299 but exceed it. In the event of flamepath damage, the barrel of PES plugs can be replaced on-site, even underground, with no specialised training or cable termination required. The replaceable barrel can also be ordered separately and kept in stock on-site. Receptacles in this range feature the Jack-In Release option.
Contact us

  • Features

    • A single solid earth body
    • Single piece contacts preventing hot joints
    • Easy termination
    • Easy flameproof repair
    • Full solid earth connectivity throughout product
    • Full phase to phase segregation with earth
    • Lightest Ex product on the market

  • Accessories

    • Silicone protection cover
    • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Technical Information

  • Specs

    Volts 660-1,100
    Amps Ex 60 Amp; Non Ex 90 Amp
    Receptacle Weight (KG) 5.0
    Plug Weight (KG) 2.6
    Material Grade 304 Stainless Steel

    Download Product Dimensions

    Download Product Solids

    Back

  • Test Results

    AC HV Withstand 3.32kV – 4.2kV for 1 minute
    Compliant to: AS/NZS 1299:2009
    AS/NZS 60079.0.1012
    AS/NZS 60079.1.2015
    Through Fault Current at 10 minute intervals 3.2kA for 0.2 seconds
    3.2kA for 0.2 seconds
    Temperature Rise 60A and 90A
