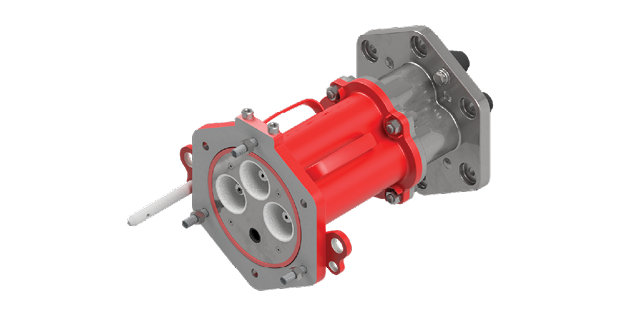

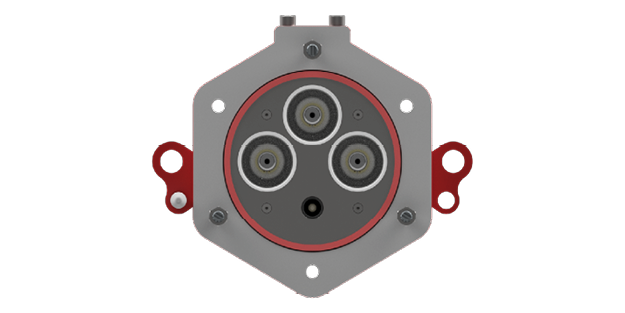

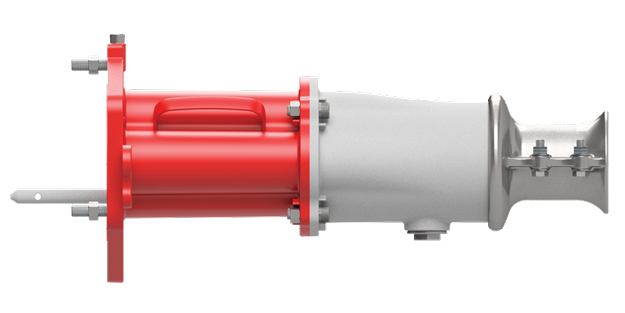

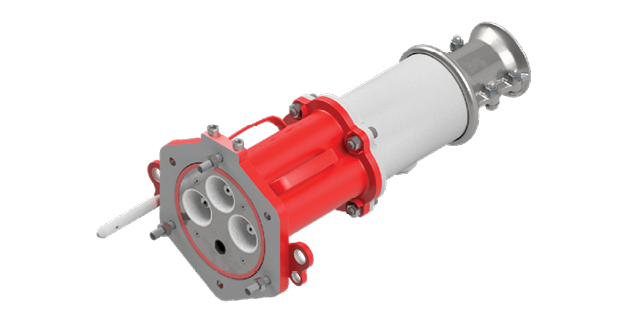

Ex126BSS Range | 12,000 Volts | 400 Amp | Flameproof Couplers
Designed for use in the South African market, the Ex126BSS is rated for 425 amps with an operating voltage of 12,000 volts.
With an excellent track record in African underground coal mines, the IP66 stainless steel Ex126BSS is flameproof certified (SANS) and suitable for use in underground mining, tunnelling, and commercial applications, including Group 1 hazardous environments. The Ex126BSS is not limited to underground use, and can be installed in opencast and metalliferous sites if a higher level of durability is required. Featuring a rugged and compact design, the Ex126BSS has been developed and tested to SANS 1489 Part 1 and 4 and to SANS 60079 Part 0 and 1, with lightening impulse tests conducted on the Ex126BSS achieving a 95kV result.
-
Features
- Pilot protection
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Stainless Steel material
- More resistant to damage on flameproof paths
- Tensions the gland without removing the clamp
- Detachable Adaptor Flange
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- LED Live Line indicator
- Silicone Phase Connectors
- Adaptor – Gear Mount
- Cast Protection Cover
- Contacts Crimp
- Contacts Soldered
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 12,000 Amp 400 LOA (mm) 525 Weight (KG) 22 Material Stainless steel Volume (Litres) 4.0 -
Test Results
Compliant to IEC 60079-0, IEC 60079-1, SANS 1489 Through Fault Current (Phase) 29.28kA for 1.0 secs (Symmetric)
58.56kA for 0.2 secs (Asymmetric)Through Fault Current (Earth) 8.0kA for 0.2 secs AC HV Withstand (Phase) 24.0kV for one minute AC HV Withstand (Pilot) 2.0kV for one minute Temperature Rise 400A Ingress Protection IP65 Impulse Voltage 75kV
95kVPartial Discharge < 1 pc
