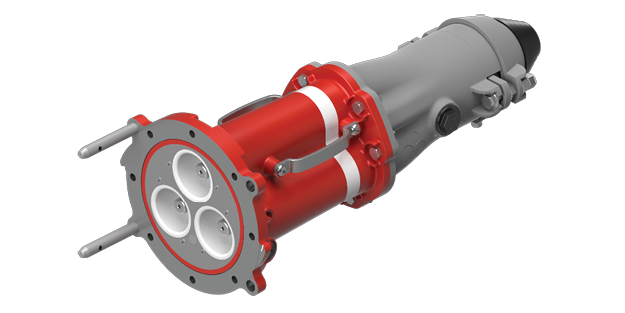

Ex118BSS Range | 11,000 Volts | 800 Amp | Flameproof Couplers
Rated for 800 amps with an operating voltage of 11,000 volts, the Ex118BSS has benefited from our drive to continuously improve and innovate.
Ex-certified and with a rating of IP66, the Ex118BSS is suitable for use underground operational sites, and pumps and tunnelling projects, though this coupler can also be used in metalliferous sites if a higher level of durability is required. Each component of the Ex118BSS has been thoroughly researched and tested by our R&D team to ensure that all parts work together to create a high quality, reliable and safe product. The design of the Ex118BSS allows for this coupler to have its gland tensioned at any time, without the need to remove components. It is also more resistant to damage on its flameproof paths.
-
Features
- IP66 rating
- Pilot protection
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Stainless Steel material
- More resistant to damage on flameproof paths
- Tensions the gland without removing the clamp
- Detachable Adaptor Flange
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- LED Live Line indicator
- Silicone Phase Connectors

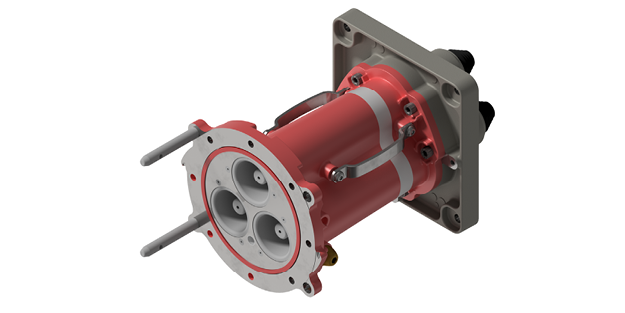

- Adaptor – Gear Mount
- Cast Protection Cover
- Crimp Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 11,000 Amp 800 LOA (mm) 690 Weight (KG) 30 Material Stainless steel Volume (Litres) 4.0 -
Test Results
Compliant to IEC 60079-0, IEC 60079-1, AS/NZS 1300 Through Fault Current (Phase) 13.5kA for 0.2 secs Through Fault Current (Earth) 8.0kA for 0.2 secs AC HV Withstand (Phase) 24.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800A Ingress Protection IP66 Impulse Voltage 95kV
110kVPartial Discharge < 1 pc
